Restore your Square Body interior with a complete 1981-87 Square Body Chevy & GMC Truck OE Dash Instrument Gauge Cluster Assembly designed to look, fit, and install just like the original GM instrument cluster. This is not a generic aftermarket gauge setup or a custom designed cluster. It is manufactured to reproduce the original factory appearance, including the correct gauge layout, lettering, colors, markings, and overall design, while giving you the benefit of all new components.
Instead of replacing individual gauges, troubleshooting multiple electrical issues, or risking damage to brittle 40-year-old cluster components, this complete assembly provides an easier solution. The cluster arrives fully assembled as one complete unit, helping save installation time while giving your dash a clean, factory correct appearance.
Complete OE Style Instrument Cluster
This assembly includes the major components needed to replace your original Square Body gauge cluster. The gauges feature original style graphics, lettering, needles, and colors to maintain the classic appearance of the 1981–87 Chevrolet and GMC dash.
The speedometer features the correct 85 MPH display, maintaining the factory look found in these model years.
Depending on your truck's original equipment and the look you want to retain, the cluster is available in three different configurations, allowing you to select the appropriate gauge arrangement for your application.
Make sure to select correction Option
Complete Assembly Includes
- Complete front and rear gauge housing
- Factory style gauges for the selected configuration
- 85 MPH speedometer
- Printed circuit
- Printed circuit retaining clips
- Clear instrument cluster lens
- Dash signal indicator lens
- Indicator lens gaskets
- Dash light sockets
- Dash light bulbs
- Gauge housing screws

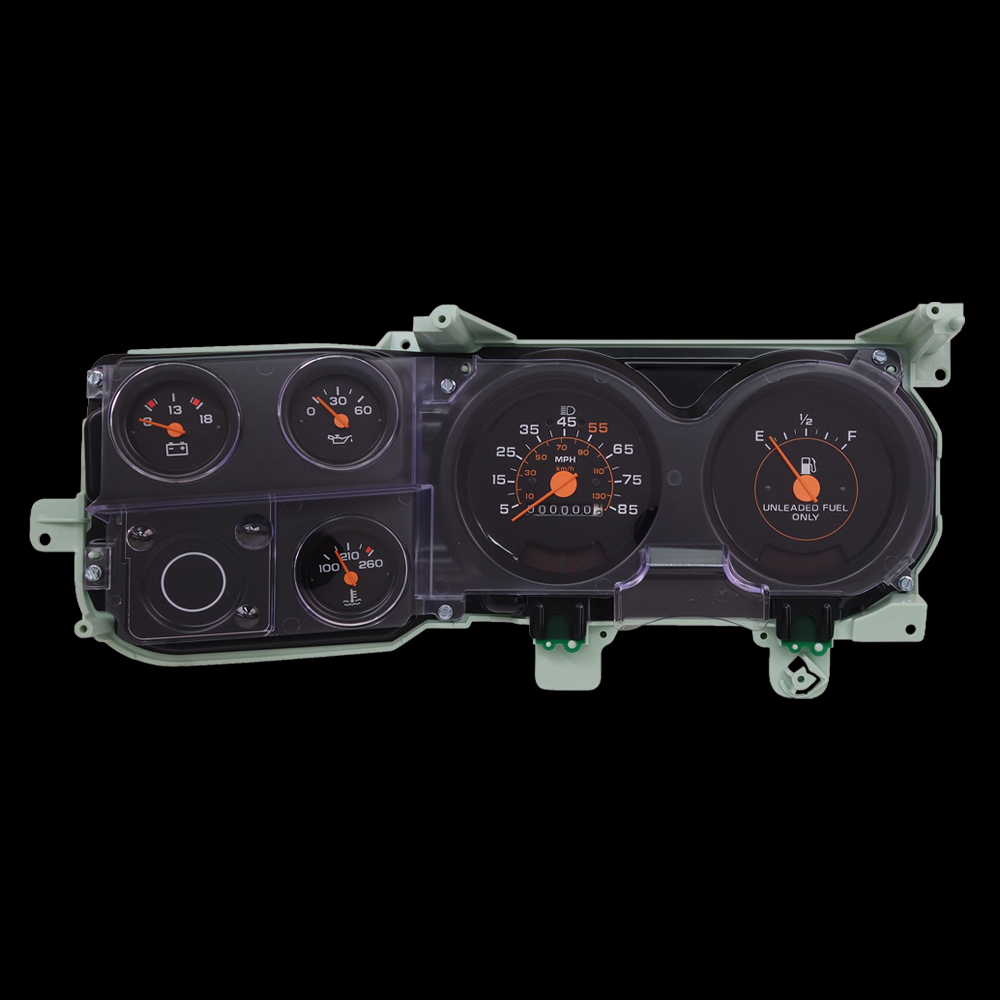

- Available with tachometer 5000 RPM, with clock, or without either
Key Feature
- Fits 1981–1987 Chevy & GMC Square Body trucks, K5 Blazer, Jimmy, Crew cab, Suburban
- Complete assembled instrument cluster
- Designed to match the original GM factory appearance
- All new components
- Original style gauge lettering, markings, colors, and needles
- Correct 85 MPH speedometer
- Includes new printed circuit, lens, housings, sockets, bulbs, and hardware
- Multiple gauge configurations available
- Designed to install in the original dash location
- Excellent choice for factory restorations and complete interior rebuilds
- Saves time compared with rebuilding an original cluster one component at a time

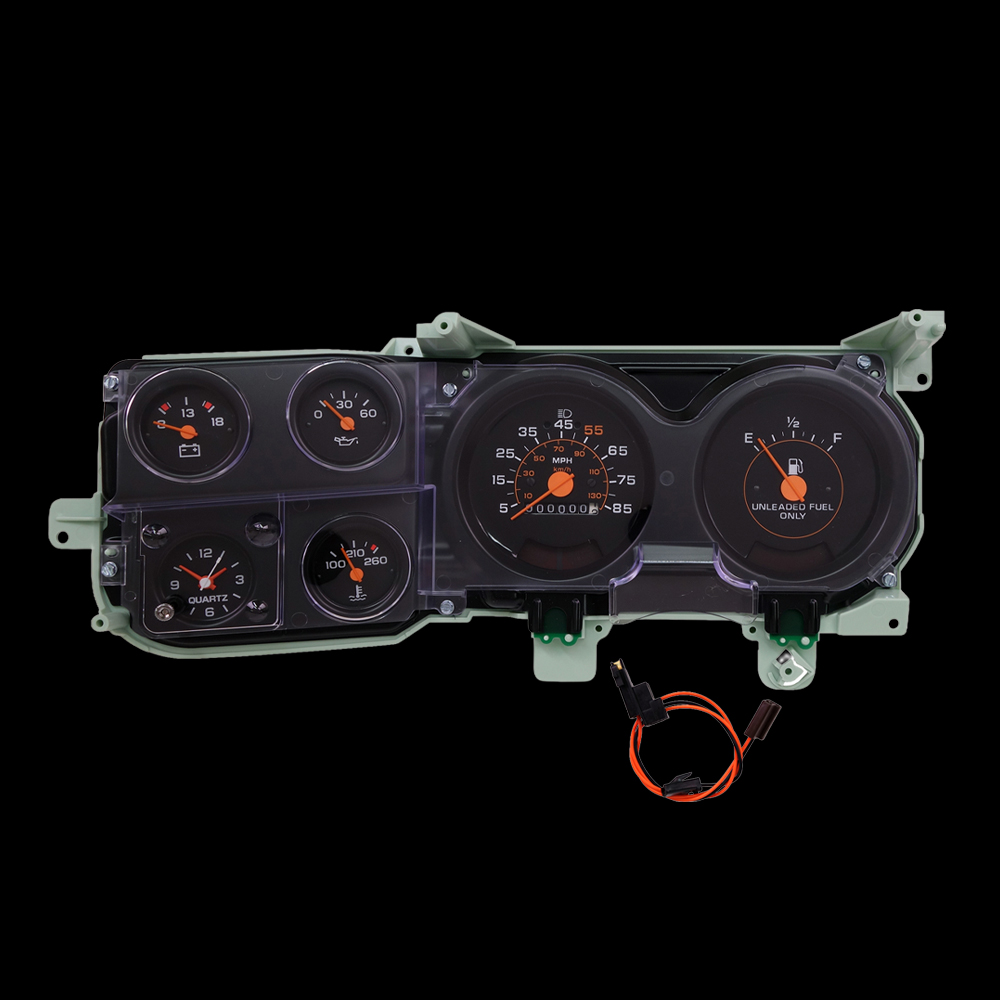

- If selected with clock it comes with wiring harness and instructions.

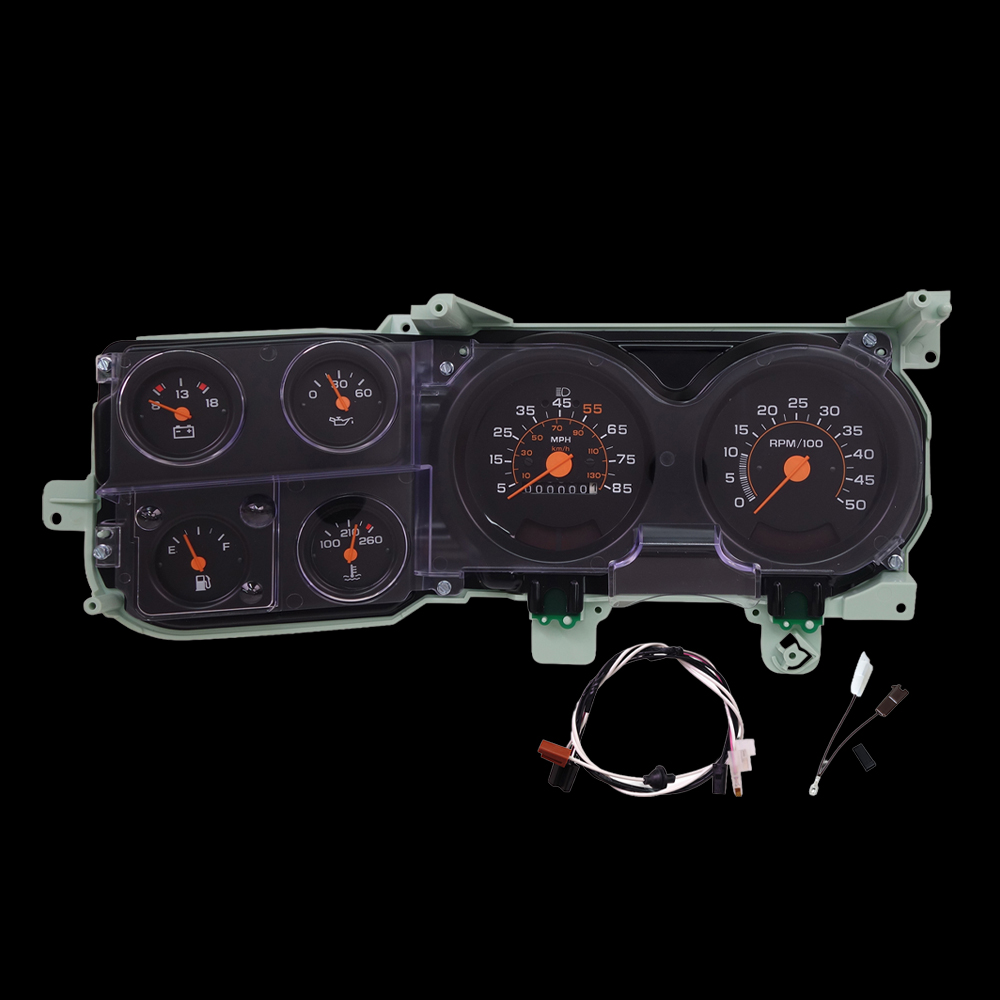

- If selected with tachometer it comes with wiring harness and instructions and meant for 8cylinder engine.
Why Replace the Complete Cluster?
Original Square Body instrument clusters have been in service for decades. Gauges, printed circuits, bulb sockets, housings, lenses, and electrical connections can all become worn or damaged with age. Replacing only one or two components can sometimes lead to additional troubleshooting or uncover other worn parts once the cluster is disassembled.
Installing a complete replacement dash cluster assembly eliminates the need to rebuild your original cluster piece by piece. It is an excellent option for a restoration, a heavily worn original cluster, or anyone wanting to refresh the entire instrument panel at one time.
Whether you're restoring a Chevy C10, C20, C30, K10, K20, K30 or GMC Square Body truck, this complete OE style dash cluster assembly gives you the original appearance without having to rely on decades-old gauges and cluster components. Select the configuration that matches your application and restore one of the most noticeable parts of your Square Body interior with a complete, ready to install assembly. Things that we believe you will need 1984-87 Square Body Chevy & GMC Truck Brushed Aluminum Dash Instrument Bezel with AC and possibly 1981-87 Square Body Chevy & GMC Truck Upper Steering Column Cover to look new.
